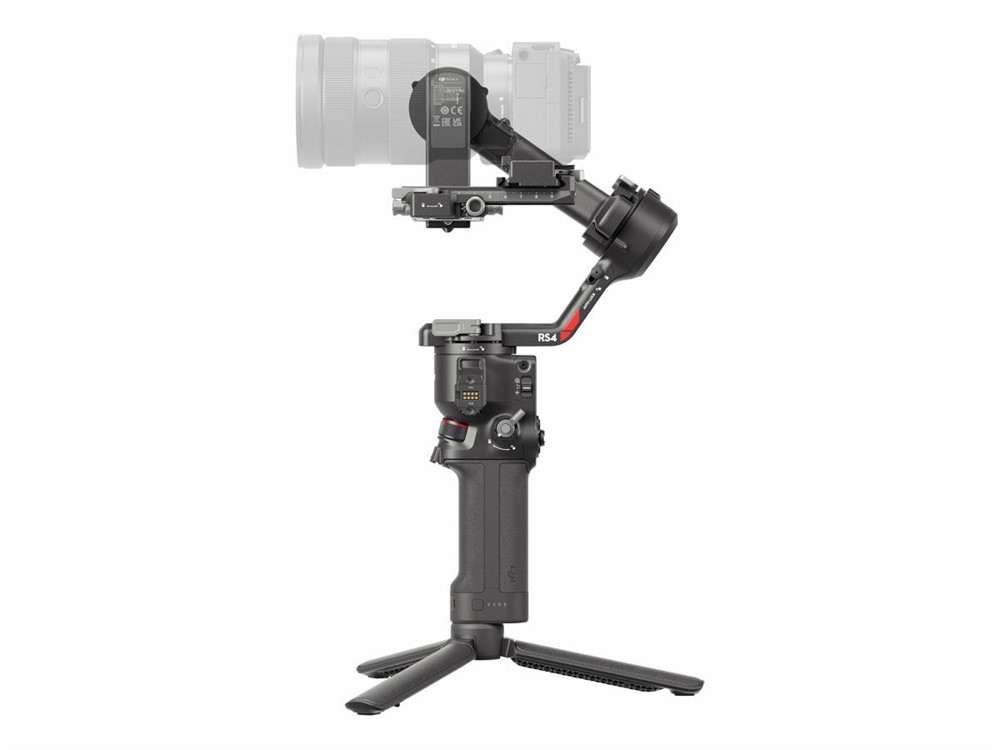

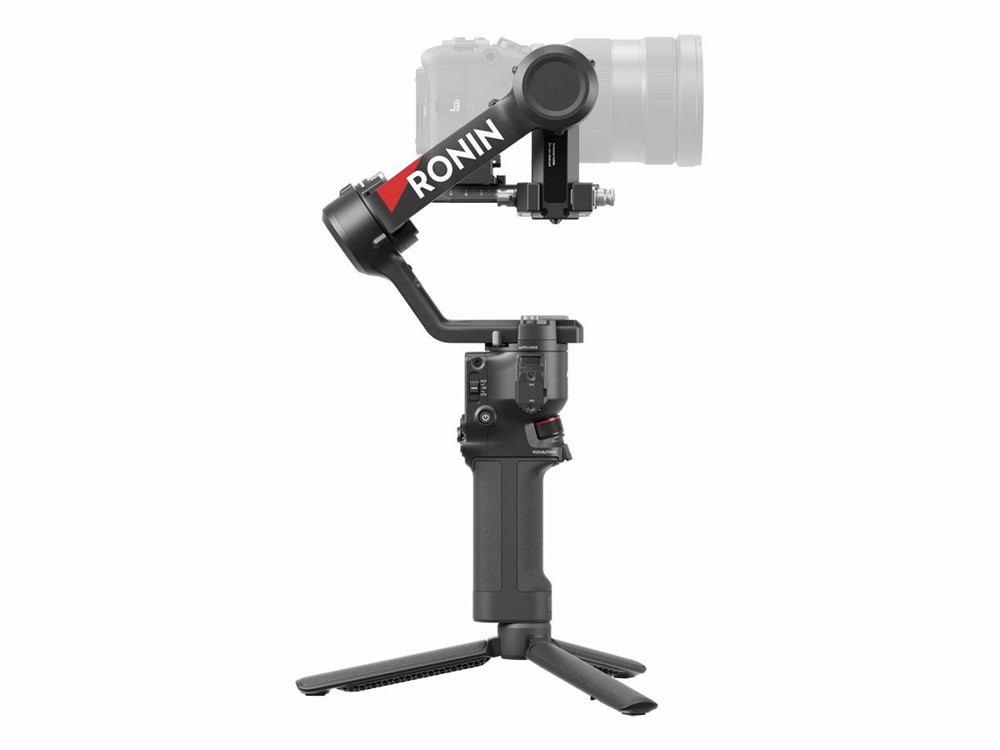

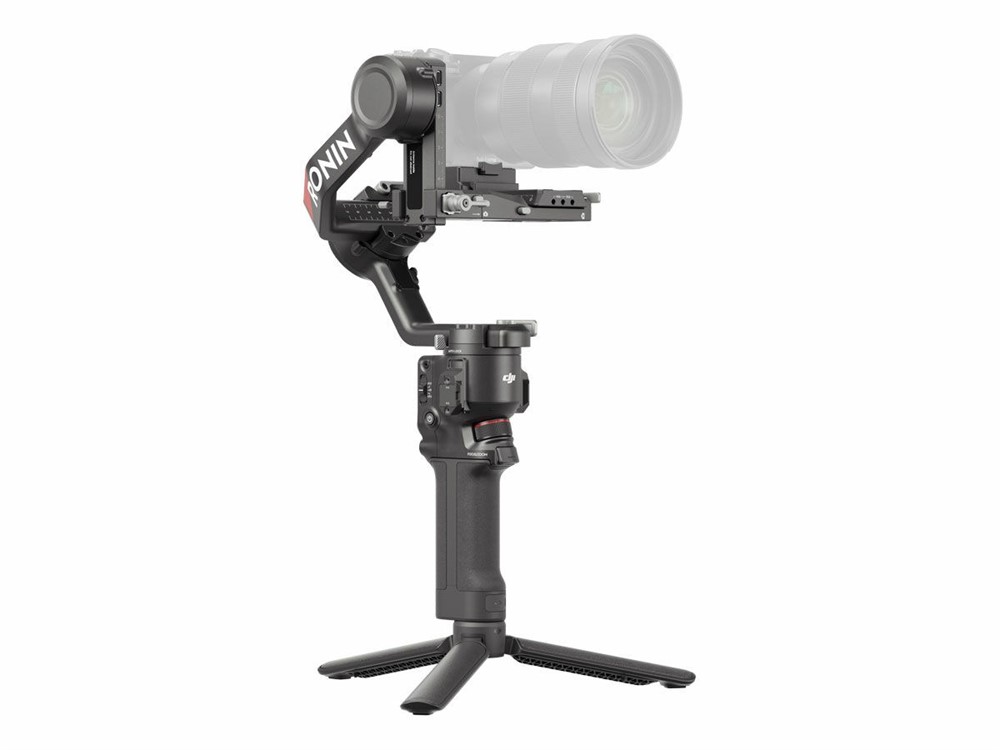

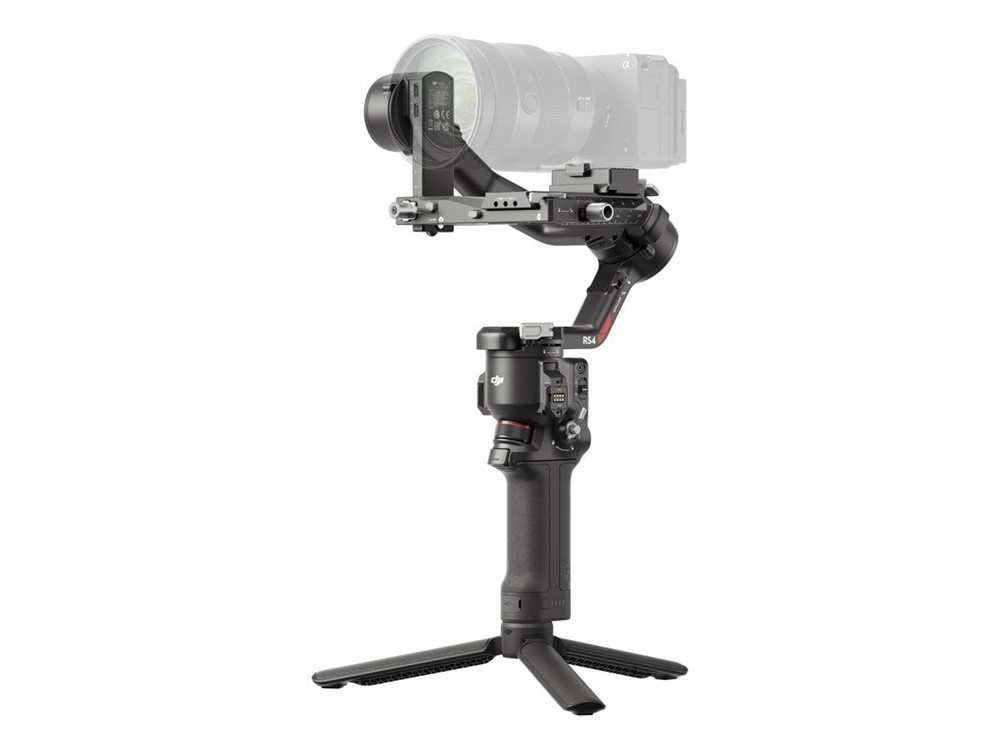

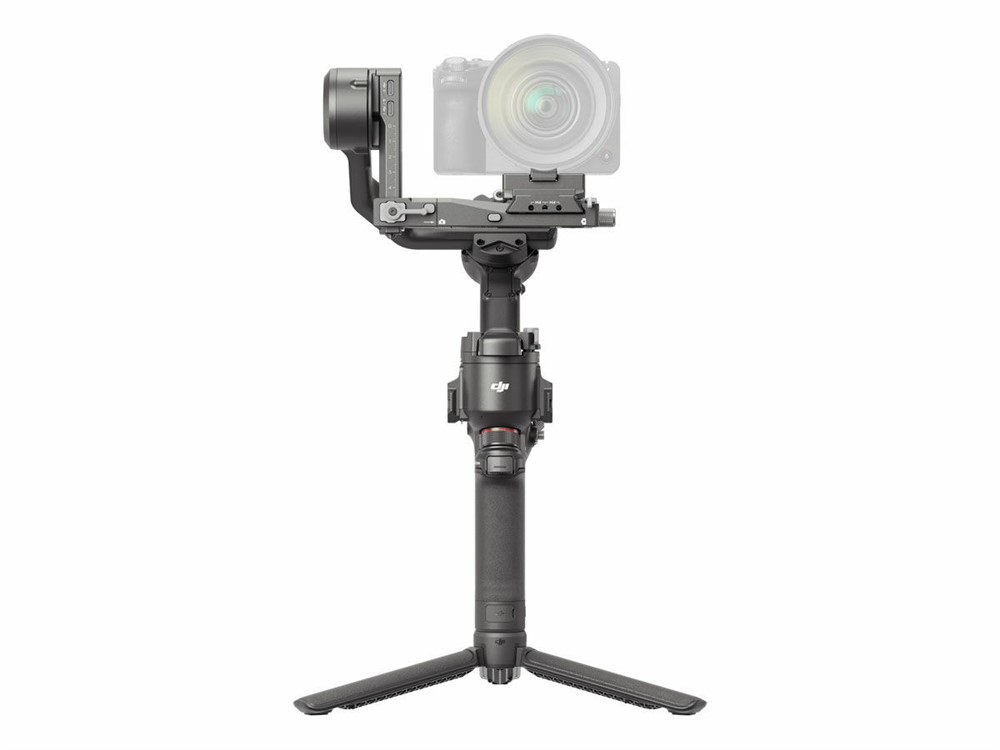

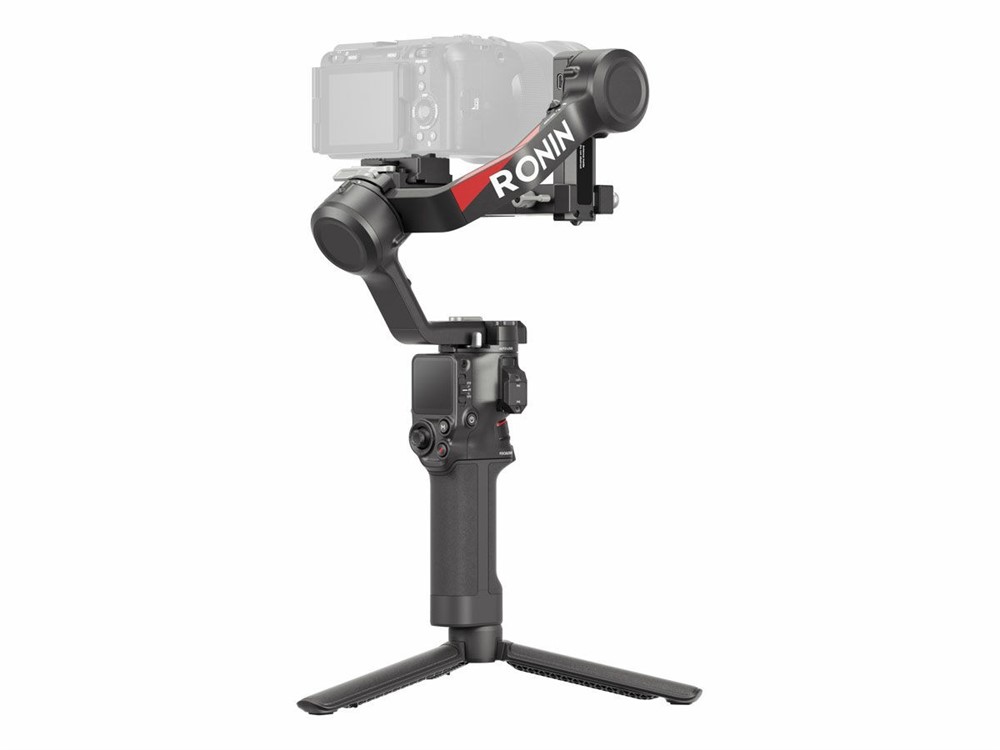

The DJI RS 4 lightweight commercial stabilizer supports next-generation native vertical shooting with enhanced operation efficiency, improved stabilization performance, and an upgraded accessory ecosystem. It empowers solo cinematographers with a more professional and efficient creative experience and the toolset to tell gripping visual stories.

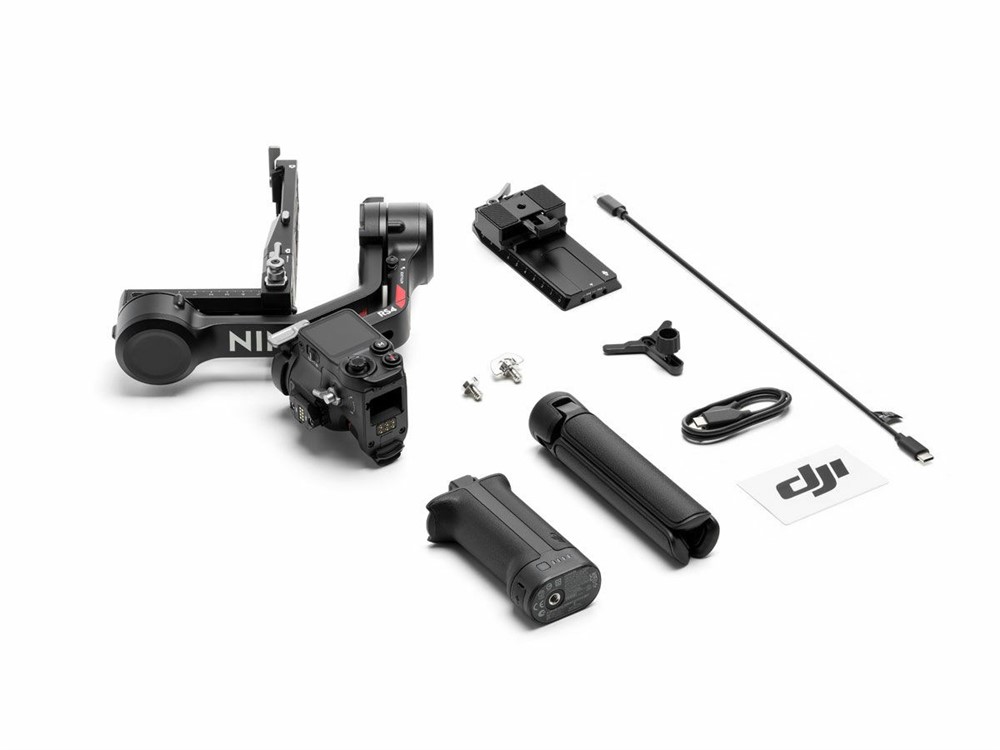

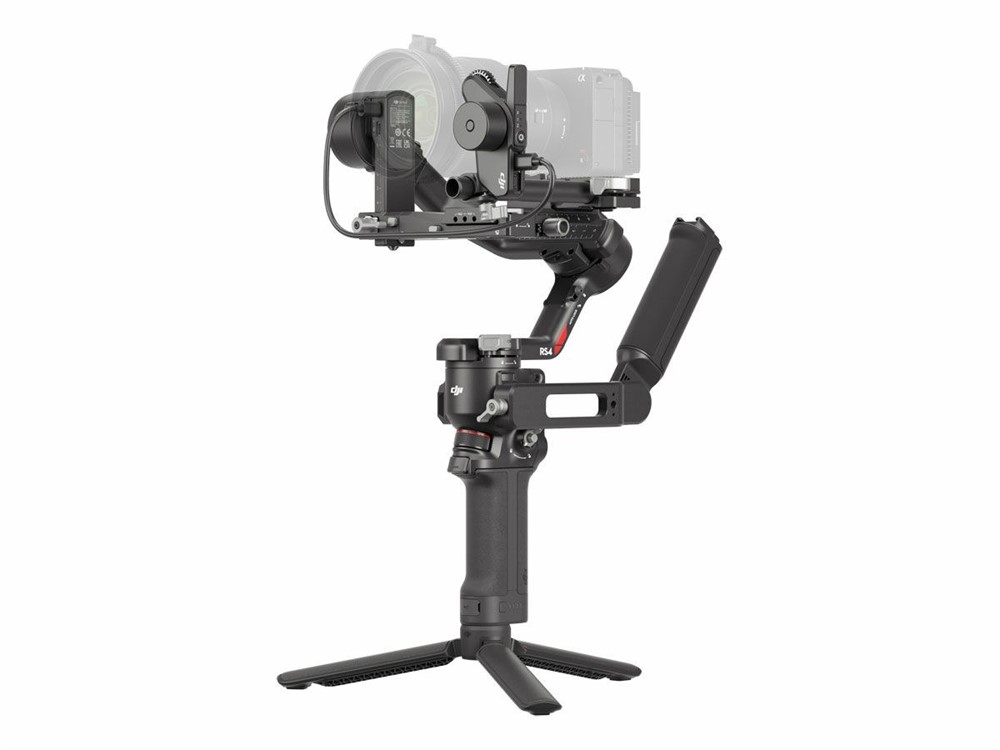

The Combo package includes additional accessories as the Foucs Pro Motor and a Carrying Case. It offers a smoother and more efficient lens control experience for solo cinematographers, achieving a broader range of cinematic expressions efforlessly.
2nd-Gen Native Vertical Shooting

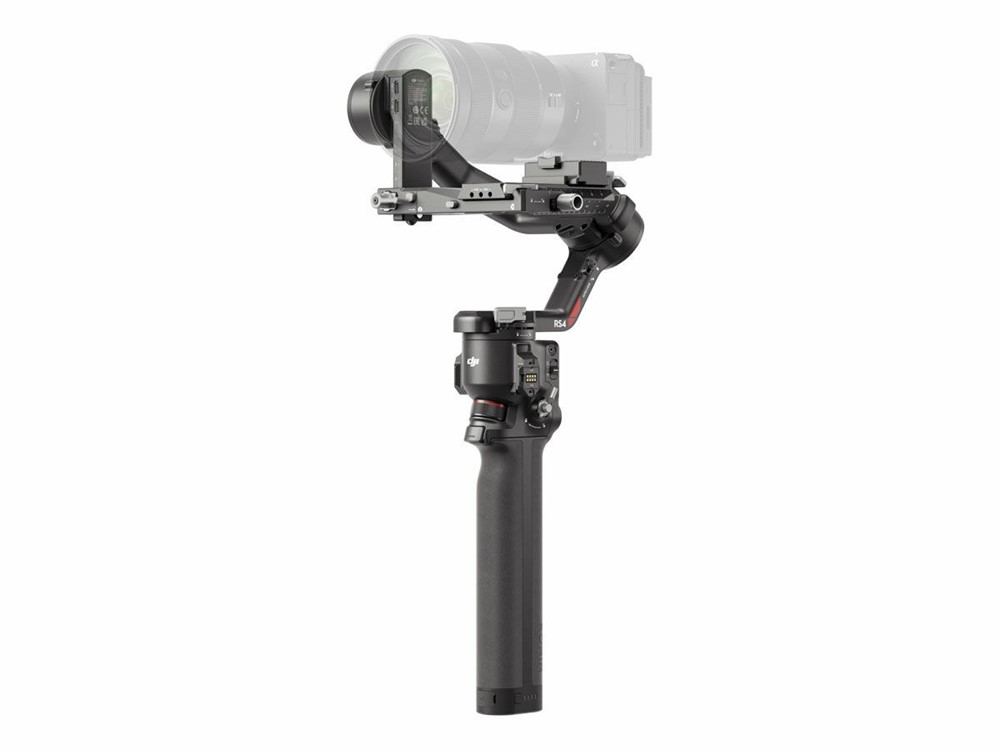

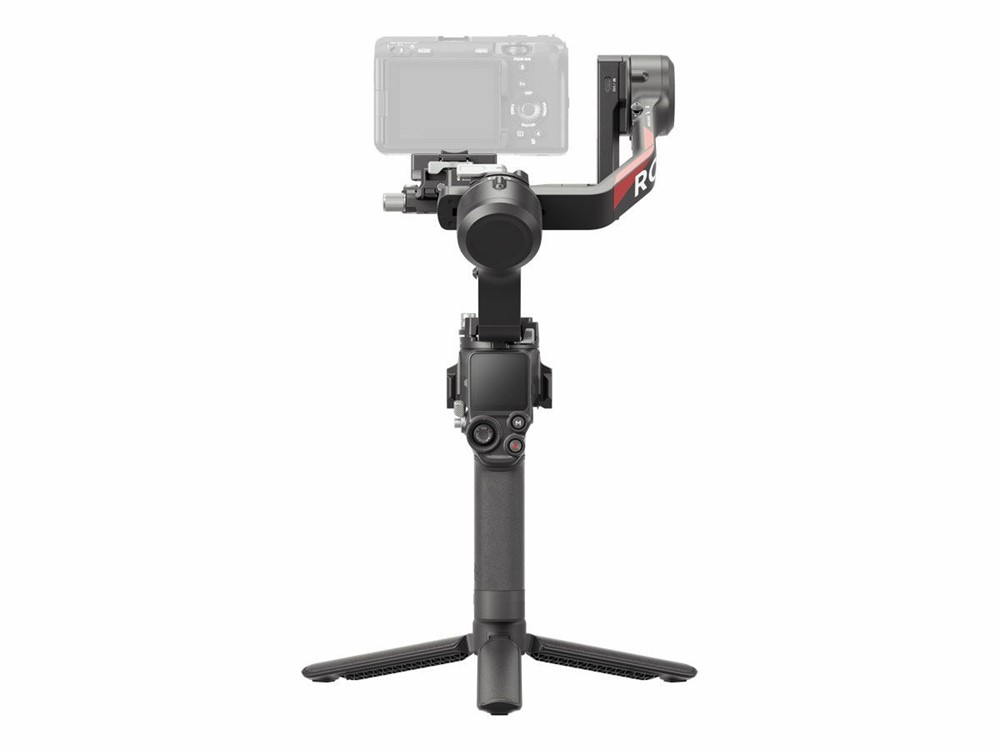

The newly designed gimbal horizontal plate eliminates the need for additional accessories. Easily switch to vertical shooting [1] for efficient vertical video creation.
Joystick Mode Switch for Zoom/Gimbal Control
Cinematographers can easily toggle between joystick modes, allowing them to control either the gimbal movement or the lens zoom via the joystick for a native zoom experience. [2]
RSA Communication Port for Extensive Control Ecosystem

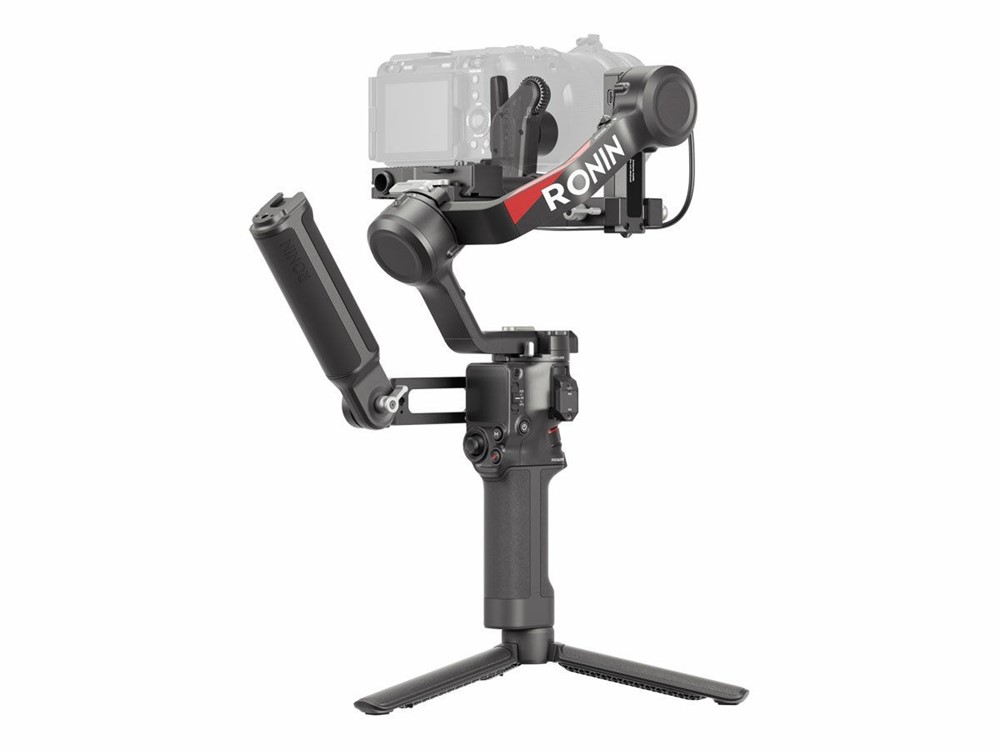

DJI RS 4 introduces an RSA communication port, which allows for the connection of accessories such as the DJI RS Tethered Control Handle and third-party accessories. [3]
High-Capacity Battery Grip for Approx. 2.5x Battery Runtime [4]
The new BG70 High-Capacity Battery Grip [3] can extend RS 4's battery runtime to 29.5 hours. [5] It also supports powering camera and accessories with up to 18 W via the USB-C port.
Teflon™-Coated Axis Arms for Smoother Balancing
Reduced friction aids in smoother balancing and a fine-tuning knob on the tilt axis moves the camera forward and backward for precise, millimeter-level balancing.
3kg (6.6lbs) Payload Capacity With Extended Tilt Axis
In addition to a high-payload capacity, the tilt axis has been extended by 8.5 mm, allowing for mainstream mirrorless camera and lens combinations, and additional accessories.
Peripheral
-
Accessory Port
-
Ronin Series Accessories (RSA)/NATO Ports
1/4"-20 Mounting Hole
Cold Shoe
Video Transmission Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
-
Battery
-
Model: BHX711-3000-7.2V
Type: LiPo 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.)
Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging. It is recommended to use chargers supporting PD protocol.)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
-
Connections
-
Bluetooth 5.1
Charging Port (USB-C)
-
Ronin App Requirements
-
iOS 11.0 or above
Android 8.0 or above
-
Languages Supported by the Touchscreen
-
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
-
Tested Payload
-
3 kg (6.6 lbs)
-
Maximum Controlled Rotation Speed
-
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
-
Mechanical Range
-
Pan Axis: 360° continuous rotation
Roll Axis: -95° to +240°
Tilt Axis: -112° to +214°
Mechanical & Electrical Properties
-
Operating Frequency
-
2.400-2.4835 GHz
DJI Ronin Image Transmitter
