Begränsat antal till detta pris! Gäller endast inneliggande lager!
- Professionell fieldrecorder med 6-kanaler.
- 32-bit float inspelning med dubbla AD-omvandlare.
- Extremt högt dynamiskt omfång.
- Detaljrik ljudupptagning vid både starka och svaga ljudnivåer
Fånga lugnet och stormen

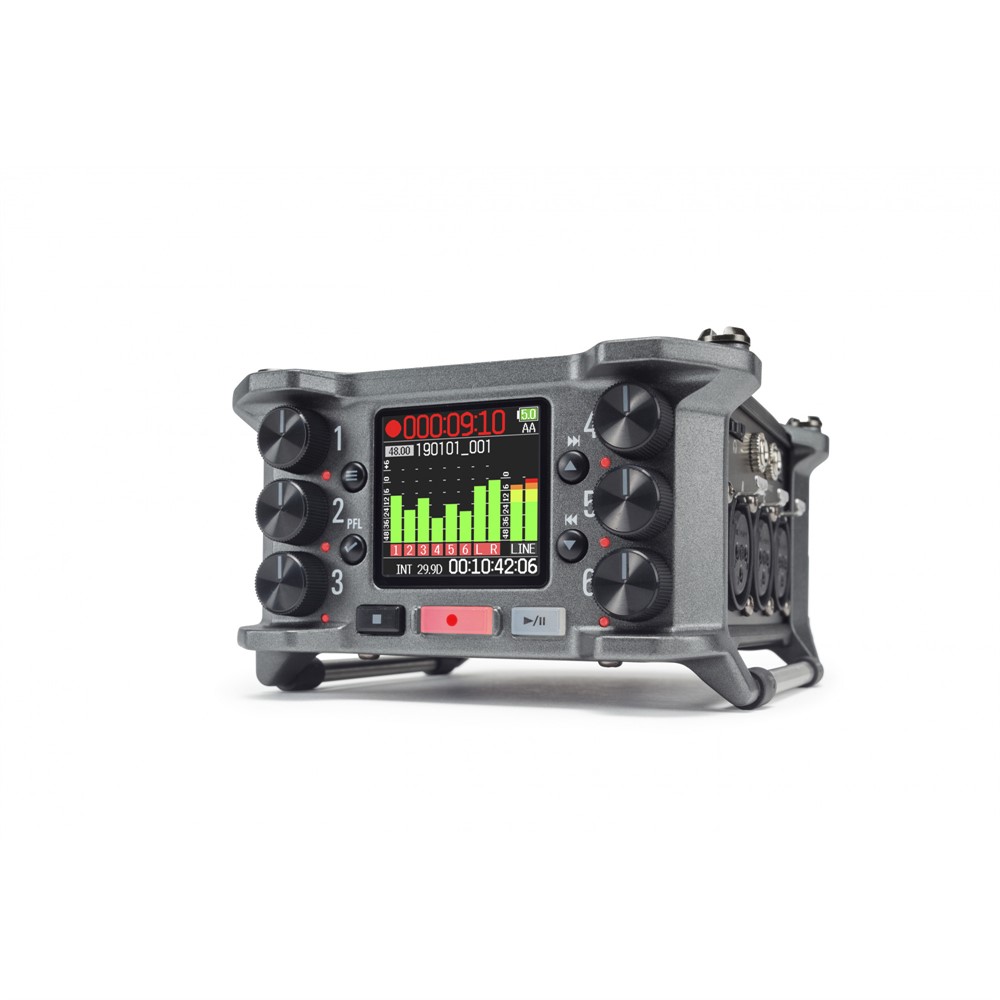

Zooms F6 är den första professionella portabla inspelaren med 32-bits float inspelning och dubbla AD
konverterare, som ger dig en dynamisk räckvidd utan motstycke. Med 6 inputs, Zooms solida tidskod, multipla kraftkällor och trådlös kontroll er F6:an ditt nya hemliga vapen.
Att filma utomhus i ett samhälle fullt med höga ljud och stora volymskillnader har tidigare bevisat sig vara svårt. Plötsliga höga ljudnivåer kan föra till klippning i ljudbilden och lugna stillsamma ljud brus. F6:an fångar både explosiva höga ljud och subtila låga ljud med fullkommen ljudkvalitet... utan att du behöver justera gain.
Features
- 6-channel/14-track field audio recorder/mixer

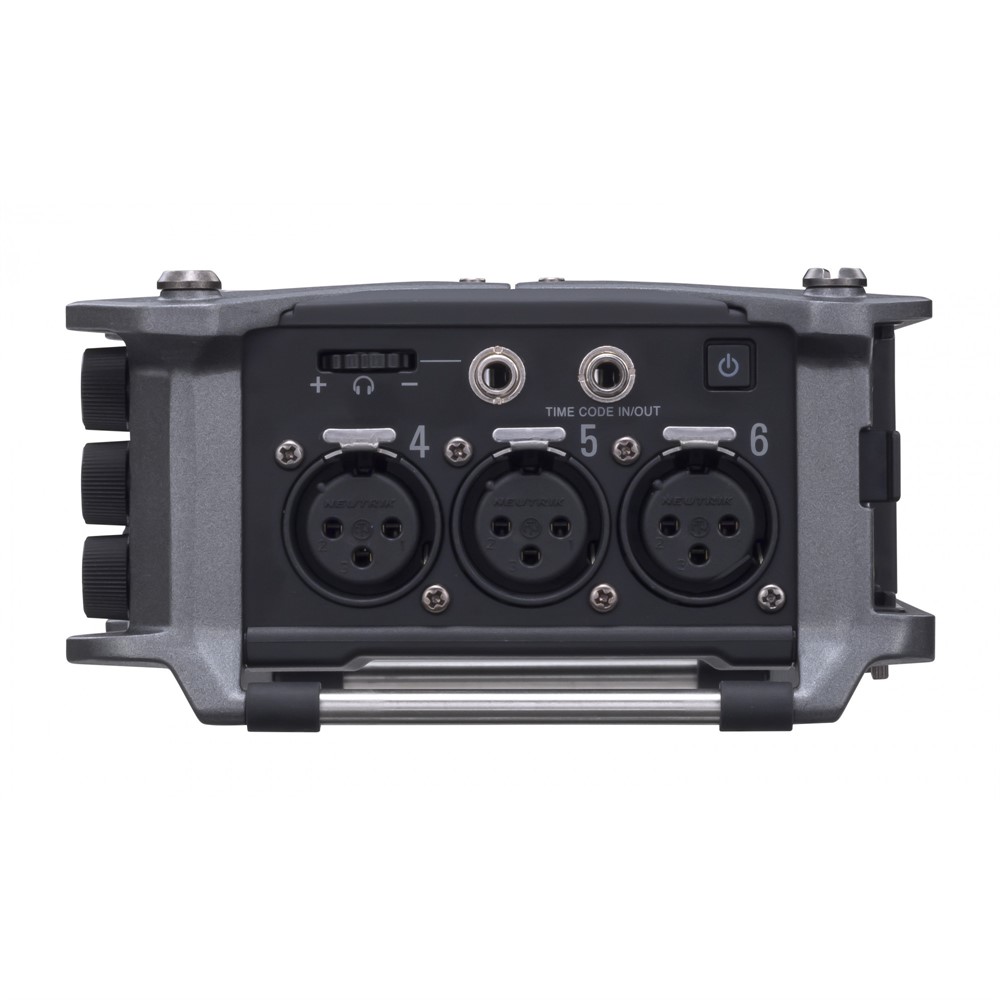

- 6 discrete inputs with locking Neutrik XLR connectors
- High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
- Switchable +4dB inputs with mic/line options
- Advanced Look-Ahead Hybrid Limiters
- Zoom AutoMix™ software
- Accurate Time Code (0.2 ppm when on and when powered off) I/O on 3.5mm stereo mini; dropframe/non-drop formats with Jam Sync

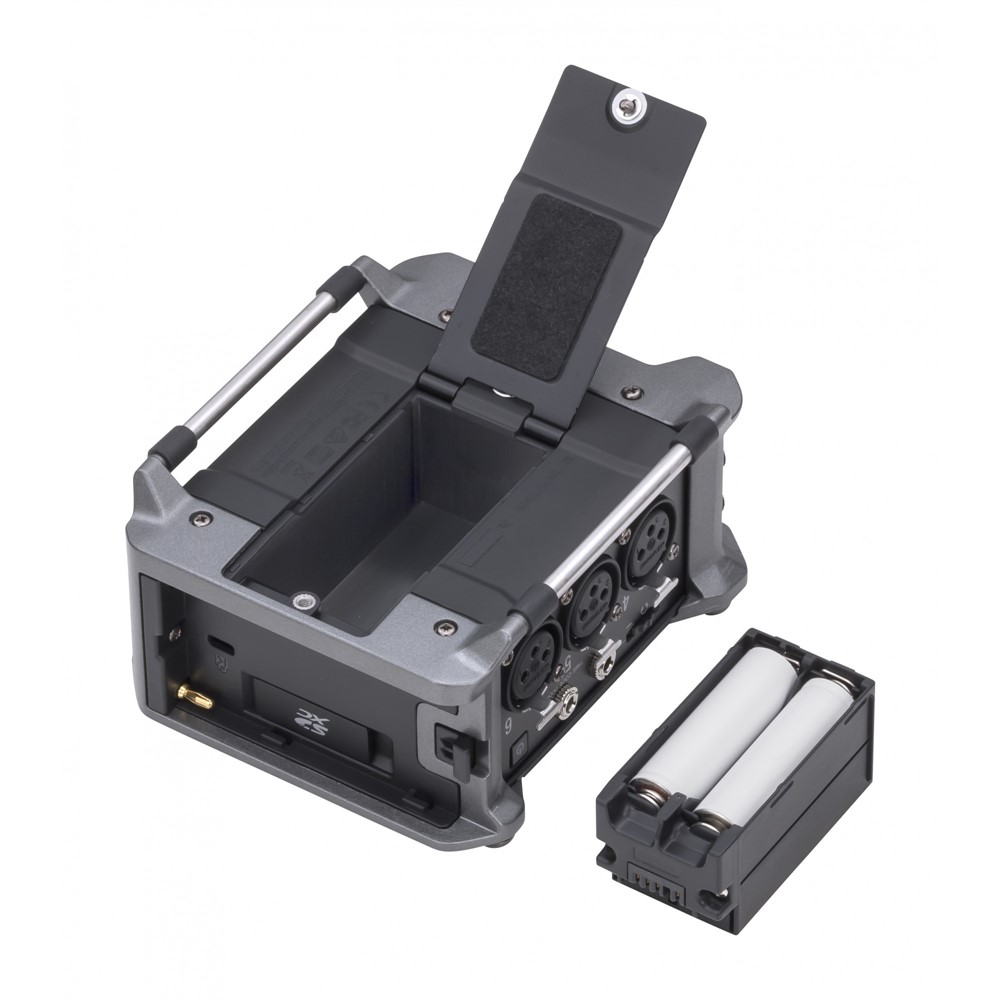

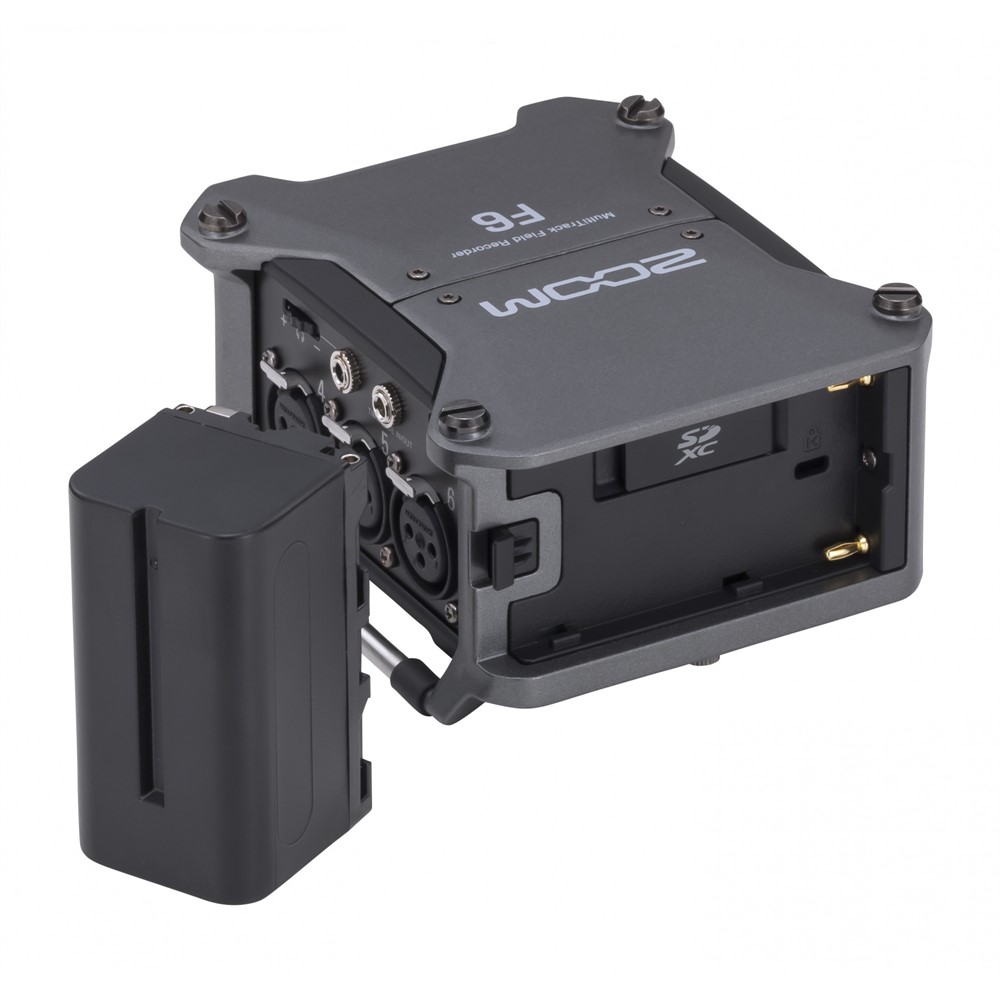

- Three different power supply options: 4x AA batteries, Sony L-Series batteries, or Zoom AD-17 12V AC Adapter (L-Series batteries not included)
- 3.5mm stereo mini unbalanced output jack
- Dedicated headphone output (100 mW) with volume control SD/SDHC/SDXC card slot, up to 512 GB
- Use as an 6-in/4-out USB audio interface (up to 96kHz)
- Use as an audio interface and record to SD card simultaneously (up to 48kHz)
- Free Zoom F Control App for iOS allows wireless remote control, file renaming, and metadata entry
Specs
Recording Media
| SD cards, SDHC cards, SDXC cards (that conform to standards) |
|
INPUTS
| Inputs 1–6: |
Connectors XLR jack (pin 2 hot) |
| Input (mic): |
Input gain +12 dB - +75 dB |
| |
Input impedance 3 kΩ or more |
| |
Maximum input level +4 dBu |
| Input (line): |
Input gain −8 dB - +55 dB |
| |
Input impedance 5 kΩ or more |
| |
Maximum input level +24 dBu |
| Phantom power: |
+24/+48V 10mA maximum for each channel |
| Equivalent input noise: |
−127 dBu or less (A-weighted, +75 dB input gain, 150 Ω input) |
OUTPUTS
| Line output: |
Connectors 3.5 mm stereo mini unbalanced output |
| |
Output impedance 100 Ω or less |
| |
Reference output level –10 dBV, 1 kHz, 10 kΩ load |
| |
Maximum output level +10 dBV, 1 kHz, 10 kΩ load |
| |
D/A dynamic range 95 dB typ (−60dBFS input, A-weighted) |
| Headphone output: |
Connector 3.5 mm stereo mini unbalanced output |
| |
Output impedance 15 Ω or less |
| |
Maximum output level 100 mW + 100 mW (32Ω load) |
| |
D/A dynamic range 108 dB typ (−60dBFS input, A-weighted) |
RECORDING FORMATS
| When WAV selected: |
|
| Supported formats: |
44.1/47.952/48/48.048/88.2/96/192 kHz, 16/24-bit/32-bit float, |
| |
mono/stereo/2-8ch poly, BWF/iXML |
| Maximum simultaneous recording tracks: |
14 (6 inputs x 2 (Linear and Floating) + LR mix) |
| |
6 (6 inputs (Linear or Floating) at Float(32bit) Mode, 192 kHz) |
| When MP3 selected: |
|
| Supported formats: |
128/192/320 kbps, 44.1/48 kHz, ID3v1 tags |
| Maximum simultaneous recording tracks: |
2 |
RECORDING TIME
| Using a 32 GB card: |
30:46:00 (48 kHz/24-bit stereo WAV) |
| |
7:41:00 (192 kHz/24-bit stereo WAV) |
TIMECODE
| Connectors: |
3.5 mm stereo mini (Tip: IN, Ring: OUT) |
| Modes: |
Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec |
| |
(audio clock can be synchronized to timecode) |
| Frame rates: |
23.976 ND, 24 ND, 25 ND, 29.97 ND, 29.97 D, 30 ND, 30 D |
| Precision: |
±0.2 ppm |
| Allowed input level: |
0.2 – 5.0 Vpp |
| Allowed input impedance: |
4.6 kΩ |
| Output level: |
3.3 Vpp |
| Output impedance: |
50 Ω or less |
POWER
| Options: |
AC adapter : DC 5V (supports USB bus power) |
| |
Sony® L-Series battery |
| |
4 AA batteries (alkaline, lithium or rechargeable NiMH batteries) |
| Continuous recording time: |
|
| 48 kHz/16-bit 2ch recording to SD card (LINE OUT off, TIMECODE off, LED/LCD Brightness 5, headphones into 32Ω load, PHANTOM off): |
Alkaline batteries: 7.5 hours or more |
| |
NiMH batteries (2500 mAh): 10.5 hours or more |
| |
Lithium batteries: 16.5 hours or more |
| 48 kHz/24-bit 6ch recording to SD card (LINE OUT off, TIMECODE off, LED/LCD Brightness 5, headphones into 32Ω load, PHANTOM off): |
Alkaline batteries: 4.5 hours or more |
| |
NiMH batteries (2500 mAh): 7.0 hours or more |
| |
Lithium batteries: 10.5 hours or more |
| 192 kHz/24-bit 6ch recording to SD card (LINE OUT on, TIME CODE set to Int Free Run, LED/LCD Brightness 60, headphones into 32Ω load, PHANTOM at 48 V): |
Alkaline batteries: About 0.5 hours |
| |
NiMH batteries (2500 mAh): 1 hour or more |
| |
Lithium batteries: 3 hours or more |
DISPLAY
| |
1.54" full-color LCD (240 × 240) |
USB
| Mass storage operation: |
Class USB 2.0 High Speed |
| Multitrack audio interface operation (driver required for Windows, no driver required for MacOS): |
Class USB 2.0 High Speed |
| |
Specifications Sampling rate 44.1/48/88.2/96 kHz |
| |
Bit Rate 16/24-bit |
| |
Channels 6 in/4 out |
| Stereo mix audio interface operation (no driver required): |
Class USB 2.0 Full Speed |
| |
Specifications Sampling rate 44.1/48 kHz |
| |
Bit Rate 16-bit |
| |
Channels 2 in/2 out |
| |
Note: iOS device audio interface operation supported (stereo mode only) |
| AIF with Rec operation (driver required for Windows, no driver required for MacOS): |
Class USB 2.0 High Speed |
| |
Specifications Sampling rate 44.1/48 kHz |
| |
Bit Rate 16/24-bit |
| |
Channels 8 in/4 out |
| Power consumption: |
10 W |
| External dimensions: |
100 mm (W) x 119.8 mm (D) x 62.9 mm (H) |
| Weight: |
520 g |
